| Brand Name : | AFS |
| Model Number : | GNF-28 |
| Certification : | CE |
| Price : | $1000-3000/pc |
| Payment Terms : | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability : | 1000pcs/m |
| Delivery Time : | 7-10days |

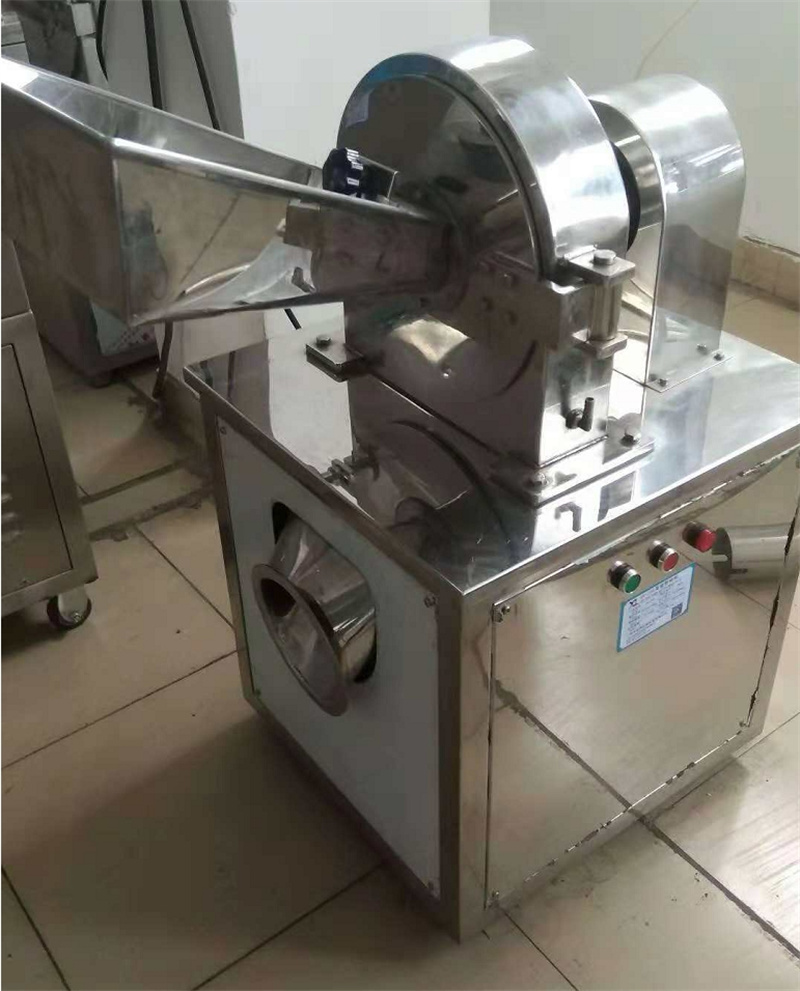

chilli powder making machine,dry pepper powder machine, red chilli powder machine
The crusher use 304 stainless steel and is equipped with national standard motors. It is mainly used for crushing chemical materials, Chinese medicinal materials, branches and massive materials, various grains with low oil content, grains and other hard, Brittle materials. Using the relatively high-speed operation between the movable tooth disc and the fixed tooth disc, the crushed objects are crushed by the impact of the tooth disc, the friction and the collision between the materials.
Processing:
Gypsum, salt, sugar, chili, pepper, star anise, cinnamon, etc.
Specification :
| Model | GNF-20 | GNF-24 | GNF-28 | GNF-36 | GNF-42 |
| Capacity | 20-130kg/h | 50-280kg/h | 80-450kg/h | 150-700kg/h | 200-1000kg/h |
| Fineness (mesh) | 10-200 | 10-200 | 10-200 | 10-200 | 10-200 |
| Weight | 120kg | 164kg | 210kg | 320kg | 410kg |
| Shaft speed (r/min) | 5200 | 4600 | 4200 | 3570 | 2700 |
| Voltage | 380/220v | 380v | 380v | 380v | 380v |
| Power | 3kw | 5.5kw | 11kw | 15kw | 18.5kw |
| Dimension | 720*530*880mm | 860*570*1060mm | 890*620*1130mm | 1040*840*1330mm | 1070*780*1350mm |
|
|
