| Brand Name : | fude |
| Model Number : | 800,000pcs/8hs |
| Price : | $8000/set |
| Payment Terms : | T/T, Western Union, MoneyGram, D/P, D/A, L/C |
| Supply Ability : | 100set/m |
| Delivery Time : | 15-20days |
bamboo toothpick making machine, toothpick production line, barbecue stick machine
This line capacity 800,000pcs/8hs, about 100kg. Need 4-6 workers, use 380v three phase power, if add another one toothpick sharpening machine, the capacity will be doubled.

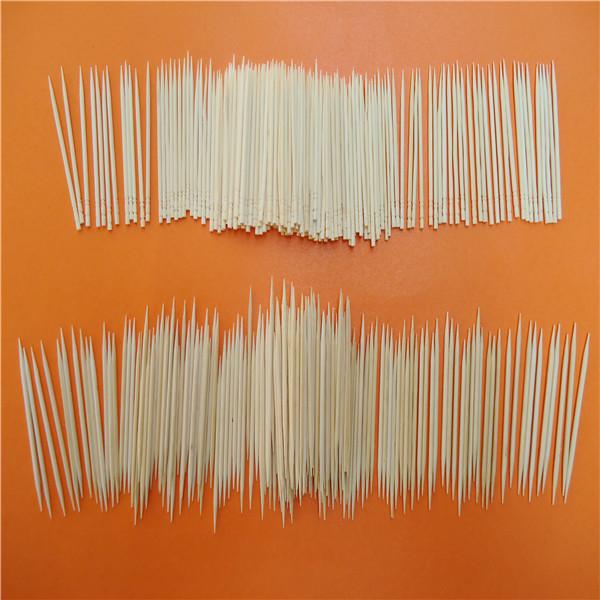

Usually 100kg fresh bamboo, can produce diameter 2mm, length 65mm toothpick 100,000-130,000pcs, after drying the toothpick about 13-16kg.
If the user needs to produce the stick only one end sharp, then the machine 9 (a sharpener) can be replaced.
| No. | Machine name | Specification |
| 1 | bamboo sawing machine | Power:380v,1.5kw Weight:60kg Dimension:750*600*1300mm |
| 2 | bamboo slitting machine | Power:380v,3kw Weight:530kg Dimension:3000*950*1200mm |
| 3 | bamboo wafer separator | Power:380v,3kw Weight:260kg Dimension:1180*680*1100mm |
| 4 | bamboo filament forming machine | Power:380v,9.1kw Weight:400kg Dimension:1020*690*1050mm |
| 5 | bamboo filament sizing machine | Power:380v,0.75kw Weight:75kg Dimension:800*700*900mm |
| 6 | toothpick sizing machine | Power:380v,2.57kw Weight:140kg Dimension:900*700*950mm |
| 7 | toothpick polishing machine | Power:380v,1.1kw Weight:110kg Dimension:1050*1050*1200mm |
| 8 | toothpick sorting machine | Power:380v,0.37kw Weight:65kg Dimension:1050*900*850mm |
| 9 | toothpick sharpening machine | Power:380v,1.65kw Weight:160kg Dimension:950*650*1050mm |
| 10 | knife grinding machine | Power:380v,0.37kw Weight:50kg Dimension:450*400*870mm |
|
|
