Anyang Fashun Machinery CO.,LTD Our profession is your success Fude Machinery Co.,LTD
9 Years
| Ask Lasest Price | |
| Brand Name : | fude |
| Model Number : | 5t/day |
| Price : | $30000-$50000/set |
| Payment Terms : | T/T, L/C, D/A, D/P |
| Supply Ability : | 10sets/m |
| Delivery Time : | 30-50days |
Raisin cleaning drying processing line 5t/day
Process flow: bubble cleaning, spray cleaning----- wind blowing, draining water, lifting, feeding -----five-layer dryer----- storage

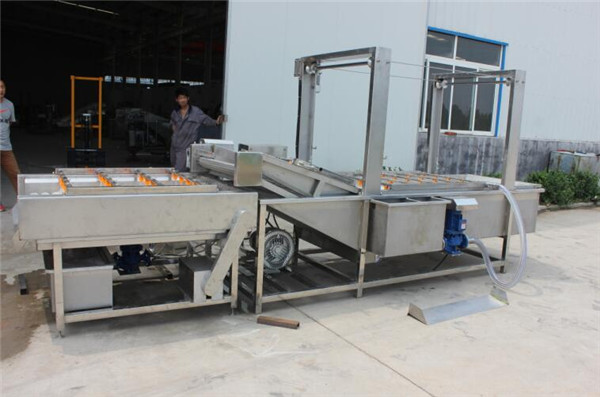

Bubble cleaning+spray cleaning
Specification :
Model :RC6000
Power :14.8kw,380v,50hz
Dimension : 5500*1200*2200mm
Material : SUS304, thickness: 2mm.
Belt width: 1000mm
Air capacity : 600m3/h
Water can be recycled ,with filter.
Spray cleaning working size: 600*800mm
Material : SUS304

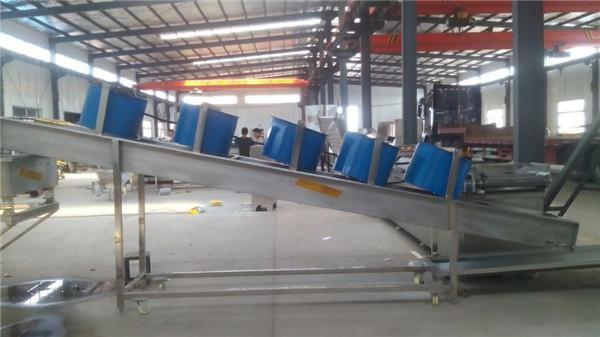

Wind blowing + lifting feeding
specification:
Model : LS5000
Power : 9kw, 380v, 50hz
Dimension : 5000*1000*2500mm
Material : SUS304, thickness: 3mm.
Conveyor : PVC food grade
Fan : 3 pcs
Fan power : 0.55kw

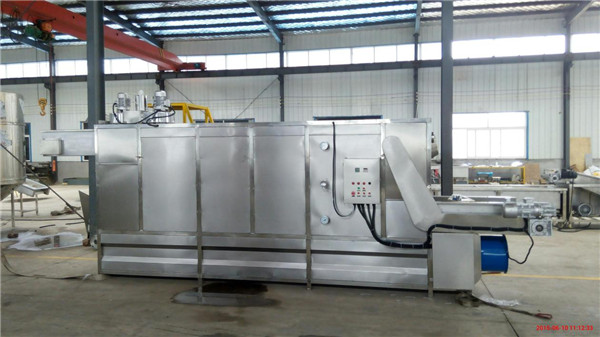

five-layer drying machine
specification :
Model : DM7000
Power : 60kw, 380v, 50hz
Dimension : 7000*1500*2500mm
Belt width : 1000mm
Material : SUS304, thickness : 3mm
Heating : electricity
Drying capacity : 200kg/h
Drying temperature : 50℃-130℃
Dehumidification fan : 3pcs, 0.55kw*3
|
|
