Anyang Fashun Machinery CO.,LTD Our profession is your success Fude Machinery Co.,LTD
9 Years
| Ask Lasest Price | |
| Brand Name : | AFS |
| Model Number : | washing , 4 grades |
| Certification : | CE |
| Price : | $5000/pc |
| Payment Terms : | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability : | 1000pcs/m |
| Delivery Time : | 10-15days |
Potato washing,fan drying, grading processing line 4t/h
Process flow:
Potato elevator--- washing--- fan drying --- grading
This production line is suitable for potatoes grown in clay land, use water to wash.
Technical parameter:
| Machine | Specification |
Potato elevator | Roller elevator Dimension : 3*1.3*1.2m Power : 0.75kw, 380v, 50hz Motor: RV series variable frequency reduction motor; Frame material: stainless steel 304 ; Roller width: 800mm; Purpose: Used for material conveying and upgrading to the next step. |

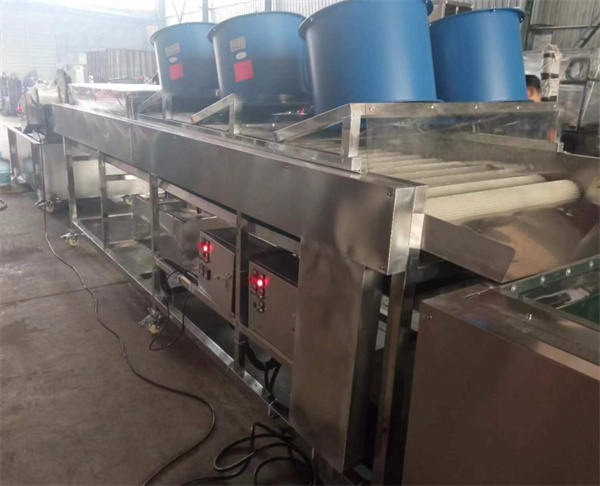

Washing machine+fan drying machine | Washing machine and fan drying machine Dimension : 4*1*1.5m Power : transmission 1.5kw+ fan 3.3kw, 380v,50hz Motor: RV series variable frequency reduction motor; Frame material: stainless steel 304 ; Cleaning: water pump circulating water spray, 5 rows of spray nozzles Brushing roller cleaning: quantity 30pcs, brush roller width 0.8 meters; Fan drying: Equipped with 6 large axial flow fans. |
Potato grading machine | Potato grading machine into 4 grades Dimension:4*1.85*1.15m Power:2.2kw, 380v,50hz Material: stainless steel 201 ; roller effective width :980mm; Grading specifications: 40-100mm user-adjustable; Grading: 4 grades |
|
|
