Peanut butter production line 200kg/h

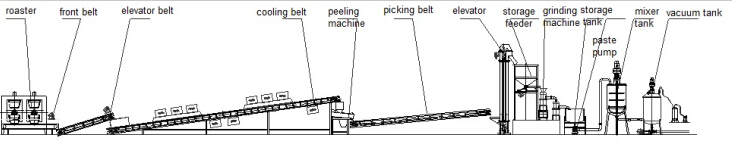

1. Drawing
2. equipment :
No. | Equipment name | Power (kw) | Dimension (mm) | QTY |
1 | Roaster | 47.2 | 2900*2100*1650 | 1 |
2 | Front belt | 0.75 | 3500*700*1200 | 1 |
3 | Elevator belt | |||
4 | Cooling belt | 3.7 | 8000*1000*1600 | 1 |
5 | Peeling machine | 0.74 | 1100*400*1100 | 1 |
6 | Picking belt | 0.75 | 5000*800*1000 | 1 |
7 | Elevator | 0.75 | 1000*500*3400 | 1 |
8 | Storage and feeder | 0.55 | 700*700*2200 | 1 |
9 | grinding machine | 5.5*2 | 900*350*900 | 1set |
10 | Storage tank | 200L | 1 | |
11 | Paste pump | 2.2 | 1200*300*350 | 1 |
12 | Mixer tank | 2.2 | 300L | 1 |
13 | Vacuum degassing tank | 2.2 | 300L | 1 |
14 | Paste pump | 2.2 | 1200*300*350 | 1 |
15 | Control cabinet | |||
16 | Pipes |
3. Factory space : ＞120m2
4. Total power : 65kw , other consumption come form the circulating water, can dig a well or buy one
cooling-water machine.
5. Workers: about 5-8 workers.
|
|
